warp.hh File Reference

#include <iostream>
#include <string>
#include <vector>
#include <array>
#include <bitset>
#include "../thread/thread.hh"

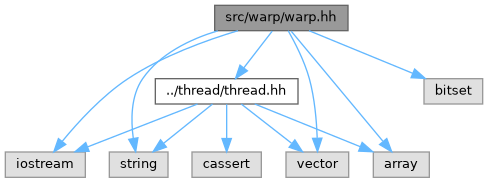

Include dependency graph for warp.hh:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	Instruction
	Instruction structure. More...
struct	reconvergencePoint
	Represents a reconvergence point in a warp It has PC value and active mask to indicate which threads are active at the reconvergence point. Might need to be extend in the future to add some metadata to handle more complex reconvergence scenarios. More...
class	Warp
	Represents a GPU warpThe Warp class encapsulates the state and behavior of a GPU warp, including its ID, program counter, threads, active mask, and current instruction. A warp is a group of threads that execute instructions in lockstep. Each warp has 32 threads in this project. To be added: reconvergence stack to handle divergent control flow. More...

Macros
#define	WARP_THREAD_COUNT   32

Typedefs
using	ActiveMask = std::bitset< WARP_THREAD_COUNT >
using	ThreadGroup = std::array< Thread, WARP_THREAD_COUNT >

Enumerations
enum	InstructionType {   ADD , SUB , LOAD , STORE ,   BRANCH }
	Instruction types enumeration. More...
enum	WarpState { READY , RUNNING , STALLED }
	Warp states Not using this yet but can be useful in future iterations to manage the state of warps more effectively, especially when we implement more complex scheduling and execution logic. More...
enum	PipelineStage {   NOT_STARTED , STAGE_0 , STAGE_1 , STAGE_2 ,   STAGE_3 , DONE }
	Pipeline stages for a warp. More...

Macro Definition Documentation

WARP_THREAD_COUNT

#define WARP_THREAD_COUNT   32

Typedef Documentation

ActiveMask

using ActiveMask = std::bitset<WARP_THREAD_COUNT>

ThreadGroup

using ThreadGroup = std::array<Thread, WARP_THREAD_COUNT>

Enumeration Type Documentation

InstructionType

enum InstructionType

Instruction types enumeration.

Enumerator
ADD
SUB
LOAD
STORE
BRANCH

PipelineStage

enum PipelineStage

Pipeline stages for a warp.

Enumerator
NOT_STARTED
STAGE_0
STAGE_1
STAGE_2
STAGE_3
DONE

WarpState

enum WarpState

Warp states Not using this yet but can be useful in future iterations to manage the state of warps more effectively, especially when we implement more complex scheduling and execution logic.

Enumerator
READY
RUNNING
STALLED
